    160KV 3D Computed Tomography X-Ray Machine Unicomp UNCT3100 For Automotive Casting Parts Non-Destructive Testing

    Ask Lasest Price
    Brand Name : UNICOMP
    Model Number : UNCT3100
    Certification : CE
    Price : Can Negotiate
    Payment Terms : T/T, L/C
    Supply Ability : 10 sets per month
    Delivery Time : 10 days
    • Product Details
    • Company Profile

    160KV 3D Computed Tomography X-Ray Machine Unicomp UNCT3100 For Automotive Casting Parts Non-Destructive Testing

    160KV 3D computed tomography X-ray machine Unicomp UNCT3100 for automotive casting parts non-destructive testing

    Product Description:


    The UNCT3100 is one compact industrial CT inspection system that offers high precision and can be utilized across various industries to meet their specific inspection requirements. It is primarily employed for small metal castings, non-ferrous metals, lithium battery cells, chips, electronic components, rock samples, cores, soils, fossils, composite materials, biological samples and other detection purposes.

    Features:

    • Functions: DR And CT dual imaging detection function; 3D scanning, data reconstruction and analysis.
    • Operation: User-friendly design of the control system, easy to operate, after a short training can be mastered.
    • High cost-effective: Specially for small product inspection, highly integrated design, complete functions,compact structure.
    • Safety: High level protection, radiation dose far lower than the national standard; multiple security measures.

    Technical Parameters:

    Product Name:160KV 3D computed tomography X-ray machine Unicomp UNCT3100 for automotive casting parts non-destructive testing
    Dimensions:1600mm*1040mm*1830mm(L*W*H)
    Machine Weight:2000kg
    Pixel Matrix:3072*3072
    Pixel Size:139μm
    Voltage:160kV
    X-ray tube type
    Split tube
    Training:Yes, we warmly welcome you to visit our factory, we will arrange the free training for you.
    Services:Help customers analyze product projects and provide detection solutions. Free sample detection test. Provide professional detection solutions. We have skilled jig design services. Provide shipping/delivery information checking service. One year guarantee, all life maintain promise. 24-hour feedback speed by email to others.

    Applications:

    The Industrial X Ray Machine product can be used across a variety of industries and applications. Here are some of the occasions and scenarios where the product can be used:


    • Defect Detection: Industrial CT scanning technology precisely pinpoints internal imperfections such as cracks, voids, and inclusions, all without compromising the integrity of the sample, thereby safeguarding product quality standards.
    • Wall Thickness Analysis: Accurately quantifies variations in wall thickness and identifies gaps, empowering the fine-tuning of intricate components for optimal performance.
    • CAD Comparison: Validates the accuracy of CAD designs by juxtaposing them against the actual geometric configurations of parts, revealing discrepancies and paving the way for design enhancements.
    • Metrology/Coordinate Measuring: Offers exceptional dimensional accuracy in measurements, augmenting traditional CMMs for a more comprehensive approach to quality assurance.
    • Fiber Composite Analysis: Detects defects like delamination, porosity, and resin cracks within composite materials, bolstering their reliability and longevity.
    • Visualization of Transfer Phenomena: Enables the clear depiction of fluid dynamics, heat distribution, and other transfer processes within materials and structures, supporting advanced design optimization.
    • Structural Mechanics Simulation Integration: When paired with simulation software, it forecasts stress levels, deformations, and failure scenarios, guiding the creation of stronger yet lighter designs.
    • Reverse Engineering Solutions: Transforms existing physical parts into highly accurate CAD models, streamlining replication efforts, redesign initiatives, and reverse-engineering projects.

    Support and Services:

    Our Industrial X Ray Machine product comes with comprehensive technical support and services to ensure optimal performance and reliability. Our trained technicians are available to provide assistance with installation, setup, and calibration of the machine. In addition, we offer ongoing maintenance and repair services to keep the machine running smoothly and to minimize downtime. Our team also provides training and consultation services to help users get the most out of the machine and to ensure safe and effective operation. Contact us for more information about our technical support and services.

    FAQ:

    Q: How about the package? Is it safe during the delivery?

    A: All X-ray inspection machine is packed with standard wooden solid carton. It is safe when shipping.


    Q: Do you provide the Warranty? How about the after-sales service?

    A: 1-year warranty free for spare parts, Whole life technical support.

    We have a professional after-sales team, if any questions, assistant videos are also provided in the after-sale service.


    Q: If we come to your factory if you will provide free training?

    A: Yes, we warmly welcome you to visit our factory, we will arrange the free training for you.

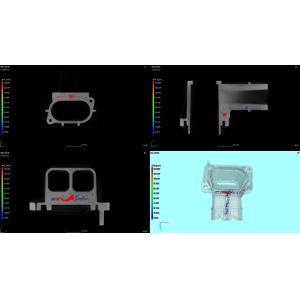

    Inspection Images:

    Quality 160KV 3D Computed Tomography X-Ray Machine Unicomp UNCT3100 For Automotive Casting Parts Non-Destructive Testing for sale
